Suitable for cylindrical laser welding

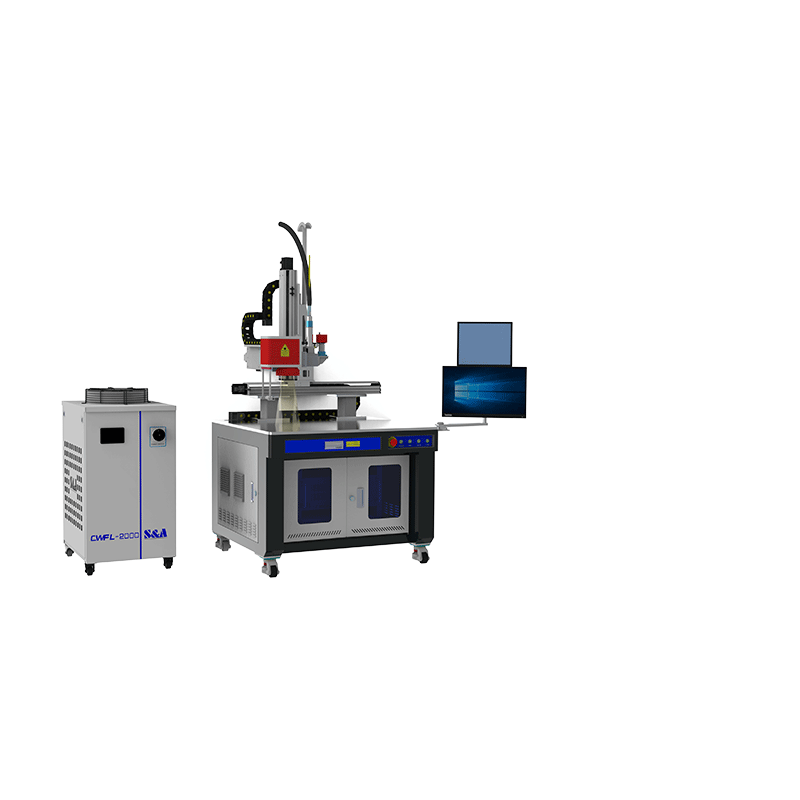

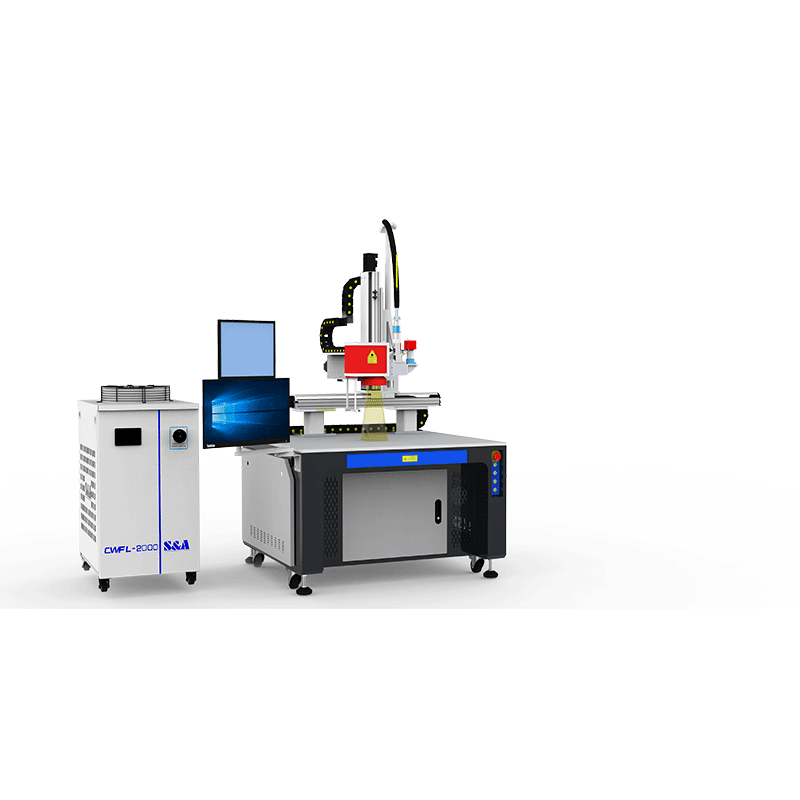

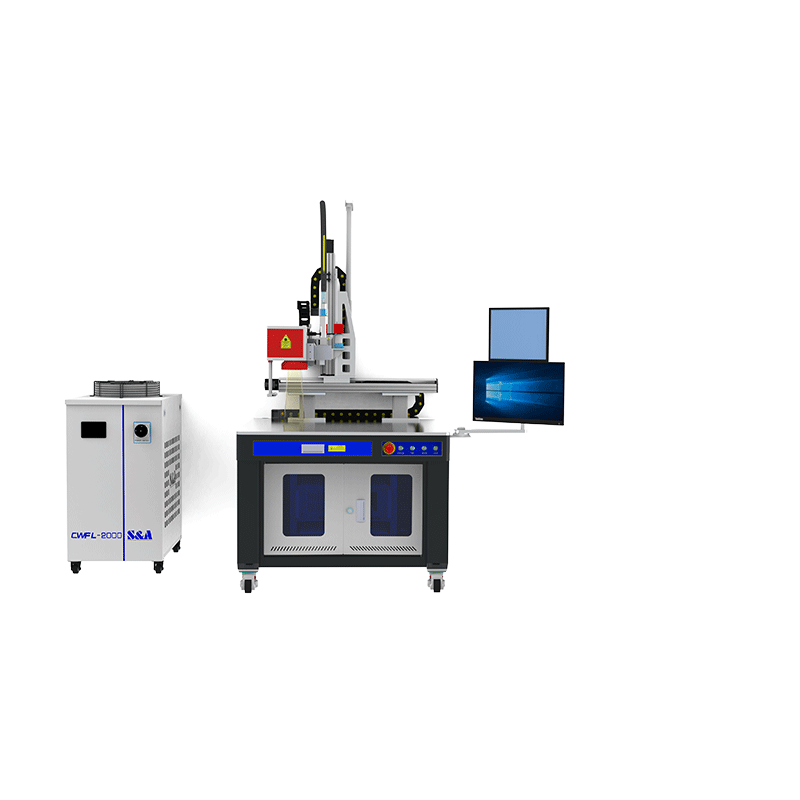

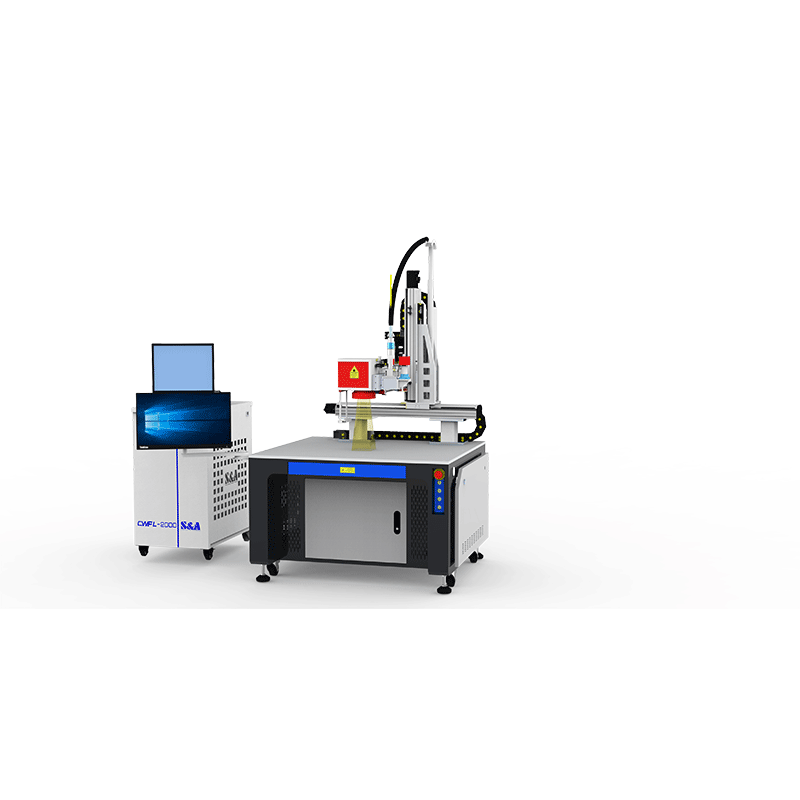

Three-axis linkage, galvanometer laser welding
Aluminum to nickel, copper-aluminum busbar laser welding
| Laser Power | 1500W, 2000W, 3000W, 4000W, 6000W |
|---|---|
| Model Number | AJ-OTG1500, AJ-OTG2000, AJ-OTG3000, AJ-OTG4000, AJ-OTG6000 |
• Laser source adopts international first-line brand, offering excellent beam quality and stable output power, suitable for welding various high-reflectivity materials (copper, aluminum, and copper-clad aluminum).
• It utilizes a high-power digital scanning galvanometer for fast welding speeds and stable performance, ensuring consistent weld depth and width for battery welds, resulting in strong and aesthetically pleasing welds.
• It is equipped with a sturdy Fangtonghuang welding platform with a thickened steel plate that easily supports loads of 100-250 kg. The X, Y, and Z axes utilize high-precision silent lead screw modules and a dual gantry drive for high motion accuracy.
• It comes standard with a distance sensor with an accuracy of up to 0.01 mm, easily resolving the issue of inconsistent welding heights caused by uneven battery stack heights.
• It utilizes an industrial motherboard and industrial control computer for stable performance and long-term operation. The easy-to-learn software makes it easy to master welding connectors, studs, nickel sheets, copper sheets, aluminum sheets, and copper-aluminum composite sheets.
Application

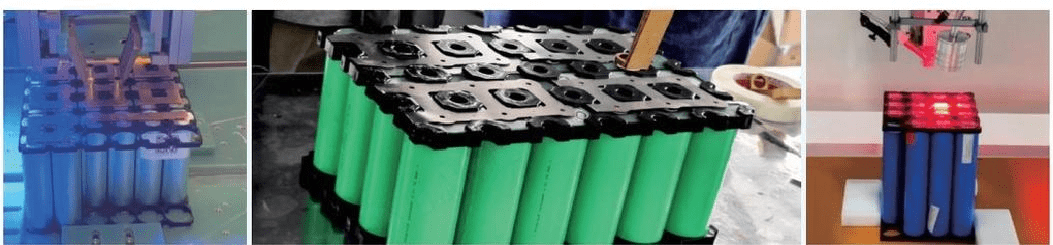

Laser welding is applied to new energy lithium batteries for the following processes:
• Nickel tabs/connectors: Joining nickel tabs for connections.
• Copper-aluminum connectors: Connecting copper and aluminum pieces.
• Tabs : Welding the tabs on battery cells.
• Poles : Attaching battery poles.
• Safety caps and explosion-proof valves: Sealing safety components.
• Busbar connectors: Connecting busbar pieces.
• Case sealing and PACK: Sealing battery casings and welding battery packs.
Detailed parameters
| Model | AJ-OTG1000W、1500W、2000W | |
| Welding range: (L*W*H) | 600mm *400mm*400mm | |
| Laser power:W | 1000W、1500W、2000W | |
| Welding focal length: (height) | F210(290mm)、F254(347mm) | |
| Equipment dimensions (L*W*H) | 1000mm*1000mm*14000mm | |
| Cold water tank size | 67mm *470mm*900mm (Reference: varies depending on laser power) | |
| Effective stroke | X axis (mm) | 600mm |
| Y axis (mm) | 400mm | |
| Z axis (mm) | 400mm | |
| Positioning accuracy | X axis (mm) | +0.04mm |
| Y axis (mm) | +0.04mm | |
| Z axis (mm) | +0.04mm | |
| Repeat positioning accuracy | X axis (mm) | ±0.02mm |
| Y axis (mm) | ±0.02mm | |
| Z axis (mm) | ±0.02mm | |
| Production and processing speed | X axis (mm/s) | 1-500mm/s |
| Y axis (mm/s) | 1-500mm/s | |
| Z axis (mm/s) | 1-500mm/s | |
| Work Environment | Temperature: 10~35°C, humidity: 5~85%, no condensation, no ice, less dust | |
